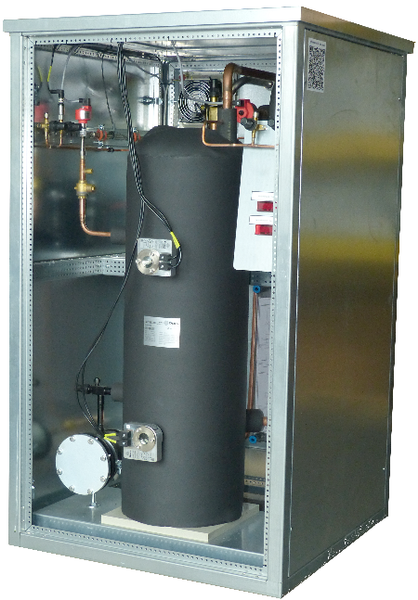

Medium pressure station MDSS
Home > Products > Products for natural refrigerant, CO2 and transcritical applications > Medium pressure station MDSS
Medium pressure station from
30 to 180 l Fully equipped
30 to 180 l Fully equipped
- With electronic high-pressure and medium pressure
valve (flash gas valve) - Variable valve driver with 4-20mA or
0-10V input - Completely wired and prepared for
connection with the CO2 compound - Easy connection through preparation with
16-pin Harting connector and 230Vac junction box - Liquid line compl. with drier caseand insert
(T-48) as well as sight glass - Weatherproof stainless steel frame
- Standard with electronic maximum level sensor
- Medium pressure vessel to prevent corrosion or heat
radiation cpl. insulated with 35mm Armaflex - Optional extensions:
- standby cooling with plate cooling heat exchanger
(refrigerant R290) - Safety valve sets with 4 or 5 valves
- Uninterruptible current supply for the valve
drivers complete enclosure for the
Outdoor installation (IP 54)
Datasheet | Instructions
